Coloplast Sensura Mio Ostomy Bag


I created the concept with my small team from January 2011 until october 2011.The final product was launched 2014. Coloplast biggest succes so far.

When I started the process we were only a team of three. When the product was launched more than 200 people had been involved in the process of bringing the product to the market.

New_Mio_1pc_midi_bThe final textile
New_Mio_1pc_midi_g

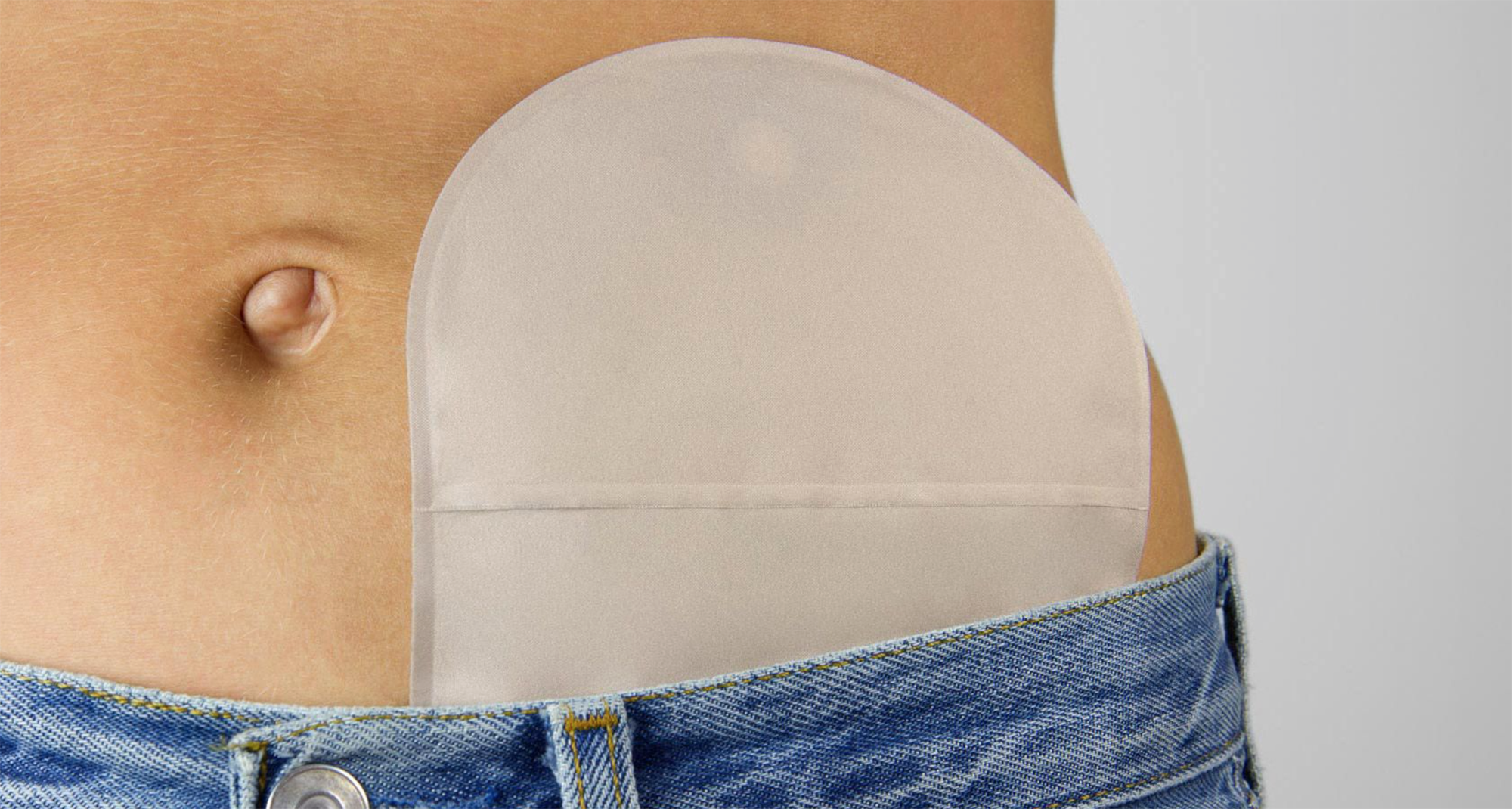

On a real body. The final prototype
mio_14
Defining that special grey colour.
mio_03
Proving that grey textile is more invisible than a colour that tries to imitate the skin.
mio_09
Considering glossiness, surface treatment and colour on fabric.
mio_08
mio_12

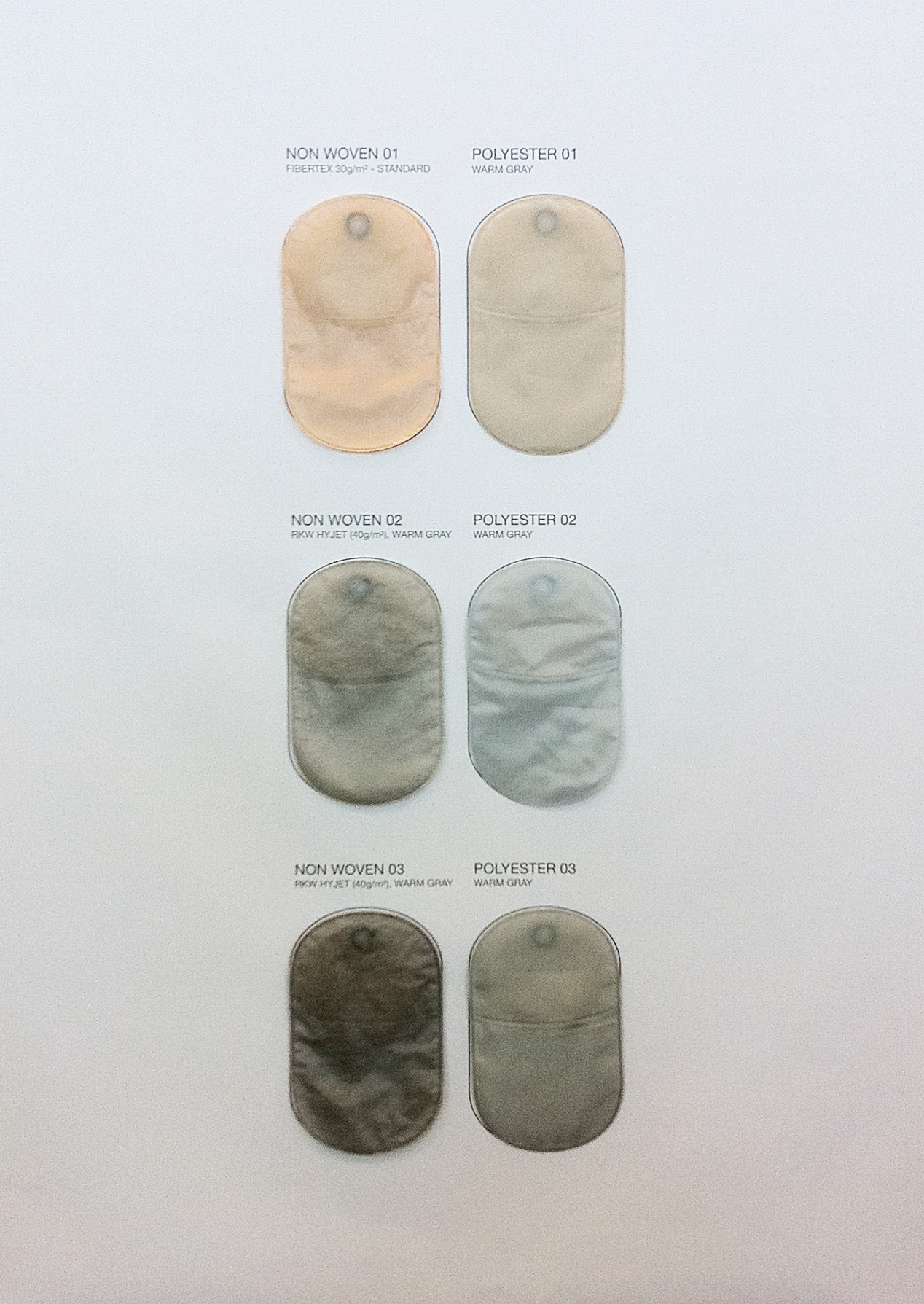

Exploring two tracks: Non-woven and Polyester fabric.
mio_11
Refining the contour.
mio_02
Exploring the welding and cost possibilities of real woven textile.
mio_10

Exploring the possibilities with “non-woven” textile.
mio_04

Creating a vision for the new ostomy bag. mio_13
Initial shape considerations:
Valley pouch 01

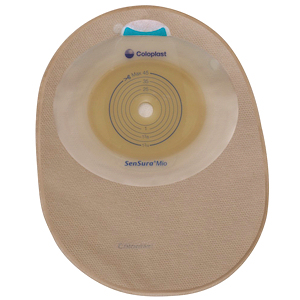

The starting point:
The old pouch made out of  non-woven fabric in a “pig-skin” colour.
